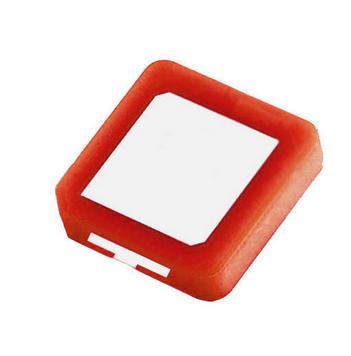

Model No. YUE-GPS-GLONASS-184
Nominal Frequency£¨MHz£©£º1590
10dB Bandwidth£¨MHz£©£º10
Return loss at center Frequency dB max -20.0
Gain(Zenith 90¡ã) dBi type£º2.0
Impedance £¨¦¸£©£º50
Axial Ratio dB max: 3.0
Polarization Model£ºRHCP
Frequency Temperature Coefficient : 20ppm/deg.¡æ max
Center frequency: -10dB bandwidth center frequency depend on the ground plane of customer
£¨ii£©Mechanical
Weight £¨gram£©£¼10
Size £¨mm£©£º18¡Á18¡Á4
£¨iii£©Environmental
Working Temp£º-40¡æ~+85¡æ
Storage Temp£º-45¡æ~+90¡æ
Vibration£ºSine sweep 1g(0-p)10~50~10Hz each axis
Humidity£ºHumidity95%~100%RH
