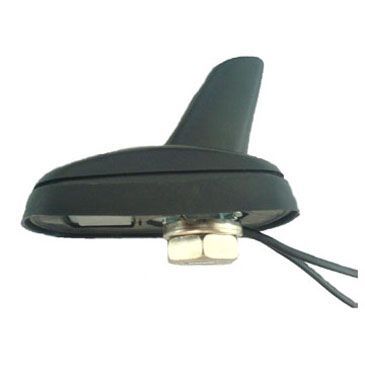

Model No. YUE-GPS/GLONASS-25
£¨i£©Dielectric Antenna
Center Frequency£¨MHz£©£º1575.42¡À3
VSWR£º1.5:1
Bandwidth£¨MHz£©£º¡À5
Impedance£¨¦¸£©£º50
Peak Gain £¾3dBi Based on 7cm¡Á7cm ground plane
Gain Coverage £¾-4dBi at -90¡ã£¼0 £¼+90¡ã(over 75% Volume)
Polarization£ºRHCP
£¨ii£©GSM Antenna
Center Frequency£¨MHz£©£º850/900/1800/1900
VSWR£º2.0:1
Impedance£¨¦¸£©£º50
Typical Gain£º2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
£¨iii£©LNA/Filter
LNA Gain(Without Cable) £º28 dBi Typical
Noise Figure£¨dB£©£º1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR £¼2.0
DC Voltage £¨V£©£º2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current £¨mA£©£º11 Max
£¨iv£©Mechanical
Weight£¨gram£©£¼240
Size£¨mm£©£º84¡Á53.8¡Á62
Cable GPS£¨m£©£ºRG174 2,5 etc.
GSM£¨m£©£ºRG174 2,5 etc.
Connector GPS£ºSMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM£ºSMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting£ºScrew(Hole/Roof)
Housing£ºBlack
£¨v£©Environmental
Working Temp£º-40¡æ~+85¡æ
Storage Temp£º-45¡æ~+100¡æ
Vibration£ºSine sweep1g(0-p)10~50~10Hz each axis
Humidity£ºHumidity95%~100%RH
Weatherproof£º100%Waterproof
