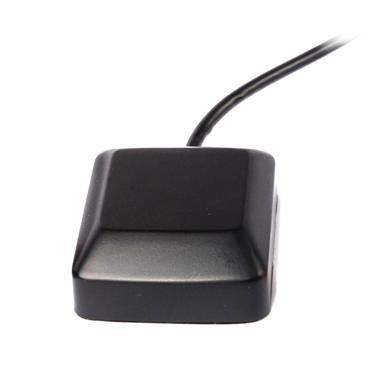

Model No.YUE-GPS/GLONASS-03
£¨i£©Dielectric Antenna
Frequency£¨MHz£©£º1575/1602
Center Frequency£¨MHz£©£º1590
VSWR£º1.5:1
Bandwidth£¨MHz£©£º¡À5
Impedance£¨¦¸£©£º50
Peak Gain £¾3dBi Based on 7cm¡Á7cm ground plane
Gain Coverage £¾-4dBi at ¨C90¡ã£¼0 £¼+90¡ã(over 75% Volume)
Polarization£ºRHCP
£¨ii£©LNA/Filter
LNA Gain (Without cable) £¨dBi£©£º28 Typical
Noise Figure£¨dB£©£º1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR £¼2.0
DC Voltage£¨V£©£º2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current£¨mA£©£º11Max
£¨iii£©Mechanical
Weight£¨gram£©£¼110
Size£¨mm£©£º44.0¡Á35.5 ¡Á14.0
Cable Length£¨m£©£º2,3 etc.
Connector£ºSMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting£ºMagnetic base
Housing £ºBlack
£¨iv£©Environmental
Working Temp£º-40¡æ~+85¡æ
Storage Temp£º-45¡æ~+100¡æ
Vibration£ºSine sweep 1g(0-p)10~50~10Hz each axis
Humidity£ºHumidity95%~100%RH
Weatherproof£º100%Waterproof
