Product Name:

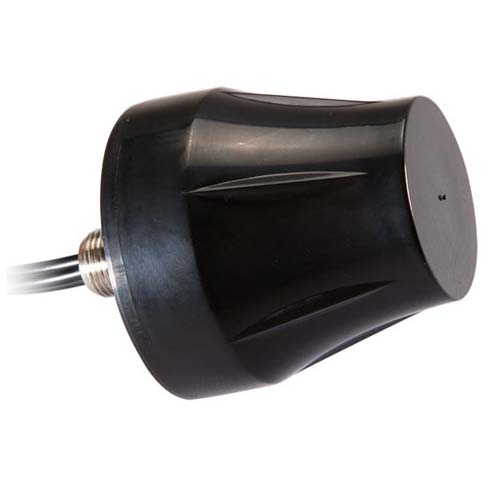

GPS+GSM YUE-GPS-E10
Product Explain


Model No.                                      YUE-GPS-E10
Size:                                               D50x48mm
Dieletric Antenna
Center Frequency                          1575.42 MHz\3 MHz
V.S.W.R                                          1.5 : 1
Band Width                                    \5 MHz
Impendence                                   50 ohm
Polarization Type                           RHCP

LNA / Filter
LNA Gain(Without cable)               30 dB Typical
Noise Figure                                 1.5 dB
DC Voltage                                    2.2~5 V
DC Current                                    5~15 mA

GSM Part
Frequency                                        824~894MHz/1710~1990MHz
                                                           880~960MHz/1710~1990MHz
V.S.W.R                                             2.0:1
Impendence                                     50 ohm
Typical Gain                                      2dBi
Cable                                                 RG174  3m/5m or others
Connector                                         SMA/SMB/MCX or others
Working Temp                                  -40≧~+85≧
Humidity                                            55%~75%RH
Waterproof                                        IP67
