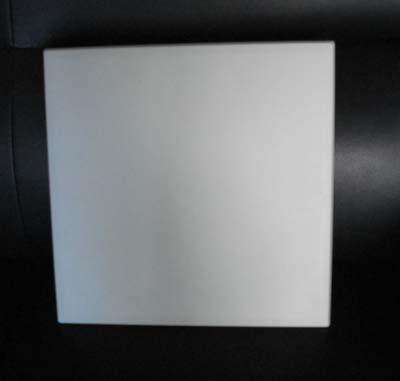

Model No. YUE-BZ-5800-23W
Frequency: 5800-5900 MHz
Gain:   23 dBi
VSWR:  <1.7
Front to Back Ratio: 32 dB
Impedance: 50Ω
E Beam Width(1/2 Power points):   12°
H Beam Width(1/2 Power points):   7°
Maximum Input Power:  50W
Dimension: 345*345*35mm
Radome Material: Uv-Resistance ABS
Cover: ABS
Polarization:  Horizontal or vertical
Rated Wind Velocity:   60 m/s
Weight: 1.3 kgs
Operating Temperature:   -40~60℃
Connector: N-Female
