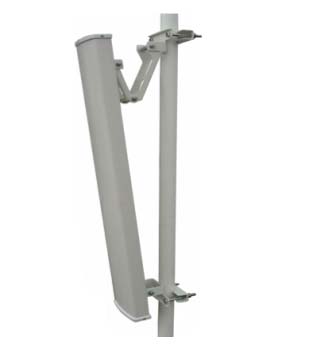

Model No. YUE-BZ-2400-18-60
Frequency:  2300-2500 MHz
Gain:  18 dBi
Horizontal Beamwidth:  60±5º
Vertical Beamwidth:  7±0.5º
Beam Electrical Downtilt:  0º
F/B Ratio ≥25 dB
Intermodulaton IM3 ≤107dBm
VSWR ≤1.5
Impedance 50
Lightning Protection DC Ground
Polarization Vertical
Max. Power 200W
Connector:  N-Female
Dimension:  840x180x60 mm
Weight:  6kg
Rated Wind Velocity 60 m/s
Mounting Mast Diameter Φ50-110mm
Working Temperature -40℃- +60℃
