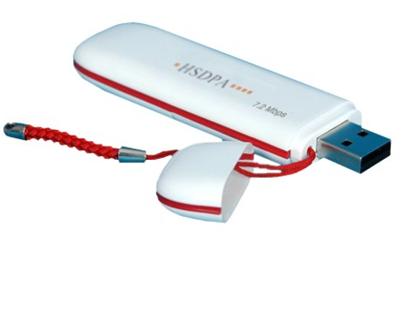

Model No. YUE-MO-100A
Advanced Features:
* Worldwide roaming and global connectivity with one modem
*HSUPA/UMTS 850/2100Mhz or 900/2100Mhz, or 850/1900Mhz
*Quad-band GSM 850/900/1800/1900MHz
*USB 2.0 high speed
*support data/SMS functions
*Automatically install driver, No CD required
*Support 32G micro sd card
*Support for Multiple APN
*Support windows 2000,XP,Vista,Win7,UBUNTU 8.04,Mac os x 10.4 and later.
Spec for data transmission:
Chipset: Qualcomm MSM 6290
HSUPA 3GPP R6£¬
7.2Mbps downlink rate and 5.76Mbps uplink rate in max,
HSDPA 3GPP R5,
7.2Mbps downlink rate and 384Kbps uplink rate in max,
UMTS Apply with WCDMA FDD
PS 384 kbps downlink / 384 kbps uplink rate in max
CS 64 kbps downlink / 64 kbps uplink rate in max
General Features:
Output power: Class 4 (+33dBm ¡À2dB) for EGSM900
Class 1 (+30dBm ¡À2dB) for GSM1800
Class E2 (+27dBm ¡À 3dB) for GSM 900 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1800 8-PSK
Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD BdI
* SIM interface 3VDC 6pin,
* Power supply: 5 VDC via USB interface
* Ambient temperature: ¨C20 ¡æ¡+65 ¡æ
* Auto switch-off at +75 ¡æ
