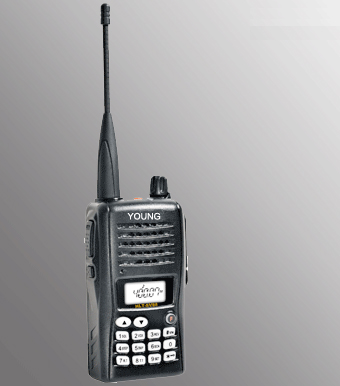

Model No. YUE-SV88
Features:
¡ñ 199 Stored Channels
¡ñ CTCSS\ DCS Function
¡ñ VOX Function
¡ñ Channel scan
¡ñ PC Program
¡ñ Wire Clone Function
¡ñ H\L Power Shift
¡ñ Emergency Alarm Function
Technical Specifications:
Frequency range: 136MHz--174MHz \ 400MHz¡ª470MHz
Frequency combination Phase lock frequency synthesize
Operation mode Simplex of co-frequency or alien frequency
Operating temperature range -10¡æ to +60¡æ
Rated Voltage DC 7.4V(Li-ion battery)
Antenna impedance 50A
Dimension 97¡Á54 ¡Á31mm(no including antenna)
Weight About 220g(including battery)
Transmitter
RF power output 5W
Modulate mode Frequency modulate
Maximum Frequency offset ¡Ü5KHz
Radiation < -60dB
Pre-Emphasis character Every octave
Transmitting current ¡Ü1500mA
Receiver
Reference sensitivity £¼0.15uV(12dB SINDA)
Squelch sensitivity Radio 0.12uV
Inter-modulation anti-interference >50dB
Audio power ¡Ý400mW
Receiving current ¡Ü140mA
Squelch waiting current 20mA
Radio
Frequency Range FM:87.5 ¨C 108MHz
