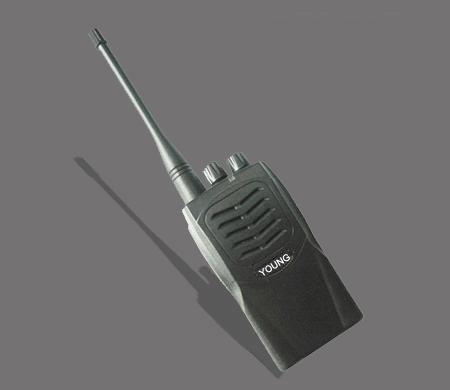

Model No. YUE-N72

Features:
●      16 Stored Channels
●      CTCSS Function
●      Li-ion/ NiMH battery(1100mAh)
●      Standby for long time(120Hs)
●      PC Program
●     Wire Clone Function

Frequency Range 400-430MHZ , 440-470MHZ
Freq.Circuit PLL Circuit
MODE F3E
Form With the frequently single worker or the different single worker frequently
Antenna Impedance 50 Ohm
Step size 5,6.25KHZ
DV Voltage DC7.4V±15%
Operation Temperature -30°C~+60°C
Distances 3-15KM(Open ground)
Channel No. 16channel
Dimensions 96(L)*53(W)*32(D)MM
Weight 195G（Include the lithium battery group）

Transmitter
Power Output 3W
Moudulation Distortion <5%(300KHz-3KHz)
Max.Freq.Deviation <±5KHz
Spurious Radiation  ±2.5PPM
Freq.Stability 6dB
Transmitting Current ≤1100mA

Receiver
Circuitry Double Super Heterodyne
Intermediate Freq. ~
1st 1F 38.850MHz
2nd 1F 450MHz
Sensitivity <0.18μV(12dB SINAD)
Squelch Sensitivity <0.16μV
Squelch Programable
Audio Power ≥500mW
Receiving Current <100mV
Standby 20mA
