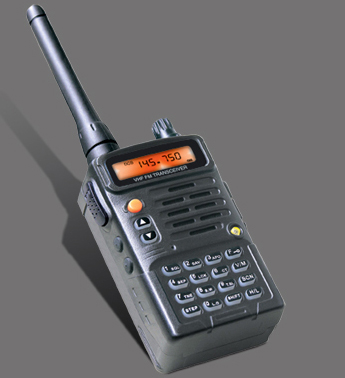

Model No. YUE-6688
Features:
¡ñ 199 Stored Channels
¡ñ CTCSS\ DCS Function
¡ñ VOX Function
¡ñ channel scan
¡ñ PC Programmable
¡ñ Wire Clone Function
¡ñ H\L(5W/1W) Power Shift
¡ñ Emergency Alarm Function
Frequency range 136MHz--174MHz 400MHz¡ª470MHz 420MHz-490MHz
Frequency combination Phase lock frequency synthesize
Operation mode Simplex of co-frequency or alien frequency
Operating temperature range -10¡æ to +60¡æ
Rated Voltage DC 7.4V(Li-ion battery)
Antenna impedance 50A
Size 85¡Á53 ¡Á31mm(no including antenna)
Weight About 220g(including battery)
Transmitter
RF power output 5W
Modulate mode Frequency modulate
Maximum Frequency offset ¡Ü5KHz
Radiation < -60dB
Pre-Emphasis character Every octave
Transmitting current ¡Ü1500mA
Receiver
Reference sensitivity £¼0.15uV(12dB SINAD)
Squelch sensitivity Radio 0.12uV
Inter-modulation anti-interference >50dB
Audio power ¡Ý400mW
Receiving current ¡Ü140mA
Squelch waiting current 20mA
