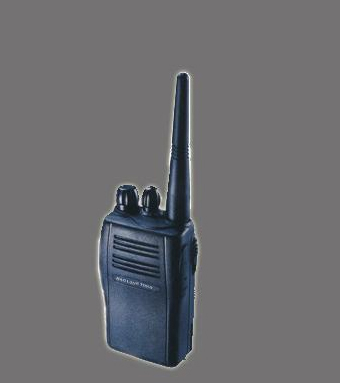

Model No. YUE-3188
Channel Scan
It enables you to set 16 channels for scan function& also enables you set for a
priority channel
Computer software Program
The user can set the frequency and other related data through computer software
50 Groups of CTCSS
It enables you to receive signal selectively by different CTCSS tones.
Time-Out Timer(TOT)
TOT will prevent any individual from using a channel for extended period nby
setting continuous transmission time.
Busy Channel Lockout
It prevents you from interfering with using channel.
Power Save Function
Power save function deceases the power consumption when no signal is being
received and no operation is being performed.
Frequency Range 400-430MHZ , 440-470MHZ
Freq.Circuit PLL Circuit
MODE F3E
Form With the frequently single worker or the different single worker frequently
Antenna Impedance 50 Ω
Step size 5,6.25KHZ
DV Voltage DC7.4V±15%
Operation Temperature -30°C~+60°C
Distances 3-15KM(Open ground)
Channel No. 16channel
Dimensions 96(L)*59(W)*32(D)MM
Weight 190G（Include the lithium battery group）
Transmitter
Power Output 5W
Moudulation Distortion <5%(300KHz-3KHz)
Max.Freq.Deviation <±5KHz
Spurious Radiation ±2.5PPM
Freq.Stability 6dB
Transmitting Current ≤1300mA
Receiver
Circuitry Double Super Heterodyne
Intermediate Freq. ~
1st 1F 38.850MHz
2nd 1F 450MHz
Sensitivity <0.18μV(12dB SINAD)
Squelch Sensitivity <0.16μV
Squelch Programable
Audio Power ≥500mW
Receiving Current <100mV
Standby 20mA
