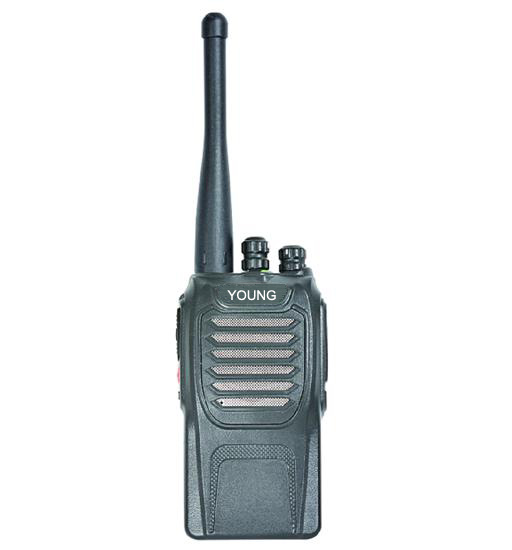

Model No. V8s

50 CTCSS/105 CDCSS
VOX Function
Voice Prompt
PC Programming
High/Low Transmit Power
FM Radio Built-in
Emergency Alarm
Intelligent Charging
Battery Save
Low Voltage Alert
Time-out Timer
Busy Channel Lockout
Noise Reduction (Compander)

Specifications Meet American MIL-STD-810C/D/E

General Specifications
Frequency Range:   VHF 136-174MHz or UHF 400-470MHz
Channel Capacity: 16
Channel Spacing:   12.5KHz/25KHz
Operated Voltage:  7.4V
Battery:   H-1500MAh Li-ion
Battery Life(5-5-90 duty cycle):  About 8 hours
Frequency Stability: ﹣±2.5ppm
Operated Temperature ﹣30℃-﹢60℃
Antenna Impedance:   50Ω
Dimensions (L×W×H) (with battery,without antenna):    110x50x34mm
Weight (with battery/antenna): 200g
Communication Range about 8km
Transmitter
RF Power Output: 5W
Modulation F3E
Spurious Emission ≤65dB
FM Noise ≤-45dB(W) ≤-40dB (N)
Audio Distortion ≦5%
Transmitting Current ＜1.3A
Receiver
Sensitivity (12dB SINAD) ≦0.20 uV
Selectivity  55dB/50dB
Intermodulation ≧65dB
Adjacent Channel Selectivity    ≧60dB
Spurious Response   ≧60dB
FM Noise   45dB/40dB
Audio Power Output   800mW
Audio Distortion ≦5%
Standby Current ≈15mA (with battery save on)
Case Material PC+ABS   Fireproof Plastic
Main Components Elan IC, Renesas RF Power Transistor
Base Color See Picture
Accessories:   Antenna / Battery / Belt Clip / AC Adapter
PACKING
pcs/ctn 50
Carton Size 480×445×640mm
OEM Service:    Yes
Warranty:   One Year
