Product Name:

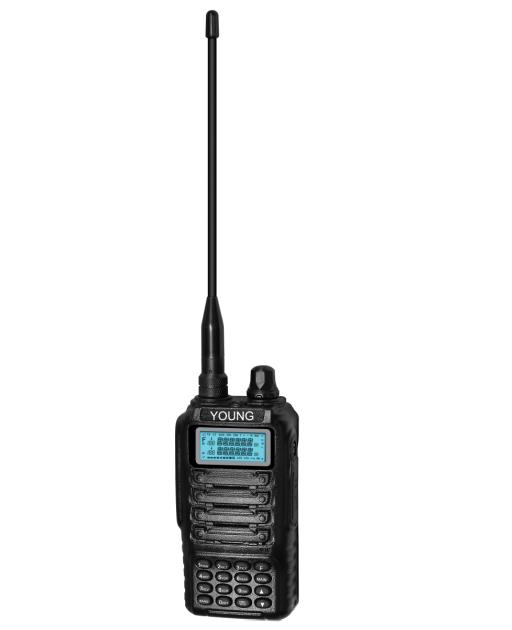

Dual Band Radio

Product Explain

Model No. YUE-145B

1.Double frequency display of the LCD
2.Voice Scranbler(optional)
3. CTCSS/DCS automatic search
4. Built-in Vox function
5.FM radio
6. Jacklight function
7. U-U,V-V,U-V work mode
8. Alpha-numeric display
9. Talk in multi-bands
10. PC progammable
11. 1750Hz call tone
12. Frequency/channel scanning
13. Channel scanning list edition
14. Wide/narrow bandwidth

Technology Indices

specification
Frequency range FM: 88-108Mhz(RX)
VHF:136-173.995Mhz(RX/TX)
UHF1:350-389.995Mhz(RX/TX)
UHF2:400-469.995Mhz(RX/TX)
UHF3:470-519.995Mhz(RX)
Memory channel 200
Rated voltage 7.2V DC
Frequency sensitivity 5ppm
Antenna disposition Inductively loaded antenna
Antenna impedance 50Ω
Dimension (100X56X37mm)
Transmitter
Output power H≥5W M≥2.5W L≥1W
Emission current ＜1.5A(5W)
Modulation sensitivity 12mV
Modulation Distortion ＜5%
CTCSS/DCS frequency deviation 0.75KHz±50Hz,0.37KHz±30Hz
Maximum frequency deviation(W/N) ＜5KHz＜2.5KHz
Remanent radiation ≤7μW
Modulation mode 16KΩF3E/11KΩF3E
Preemphasis Character 6dB(per fold)
Receiver
RF sensitivity -122dBm(12dB SINAD)
Audio power 0.5w
Audio distortion ＜10%
Adjacent channel Selectivity ≥65dB ≥60dB
Intermodulation ≥60dB ≥55dB
Blocking ≥85dB
